What is emergency lighting? Emergency lighting operates automatically when a lighting circuit loses the mains power supply. Emergency lighting falls into two categories:
Escape lighting
This illuminates exit routes and open areas. In summary:
- Exit routes must be clearly lit and signed.
- Open area lighting is designed to reduce confusion and panic, whilst ensuring visibility of the nearest exit route. Escape lighting also enables employees to shut down sensitive or potentially dangerous processes before evacuating.
Standby lighting
Standby lighting allows normal activities to continue if the main lighting fails for any reason. An application such as an operating theatre or an air traffic control centre would require standby lighting.
These illustrations show exactly where you must locate emergency lighting and signage.

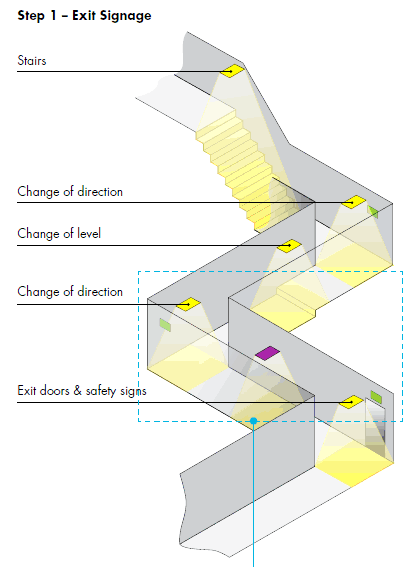

Step 1 – Exit Signage Signage must be placed to provide a clear and unambiguously marked route to the final exit.

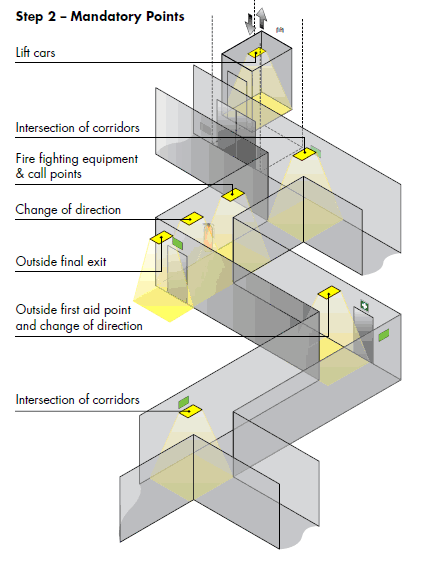

Step 2 – Mandatory Points Emergency fittings must be installed at certain mandatory points to provide essential light. As shown in the diagram above, these points include changes of level, intersections of corridors, fire-fighting equipment and first aid posts.

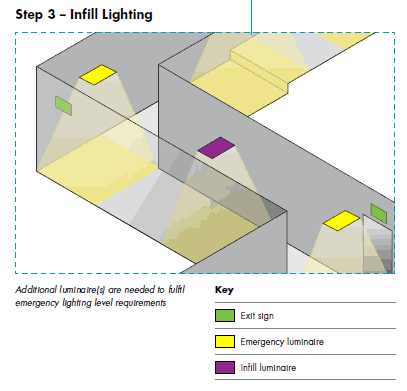

Step 3 – Infill Lighting In addition to the lighting of mandatory points, infill luminaires may be required to achieve the correct emergency lighting levels.
Below emergency battery modules are available for LED lamps or integrated LED from 4 to 40W. Beyond that capacity – must inquire with certain MoQ.

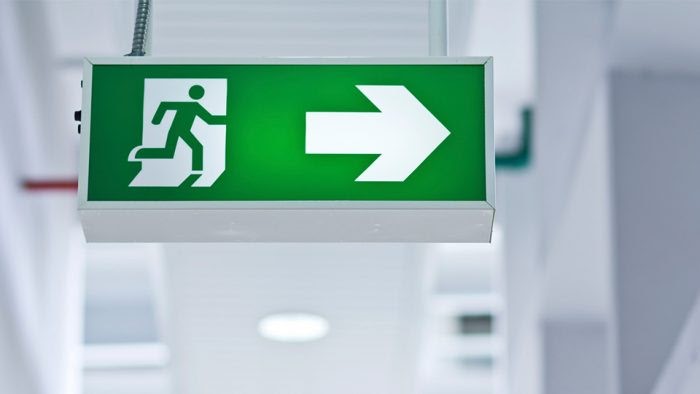

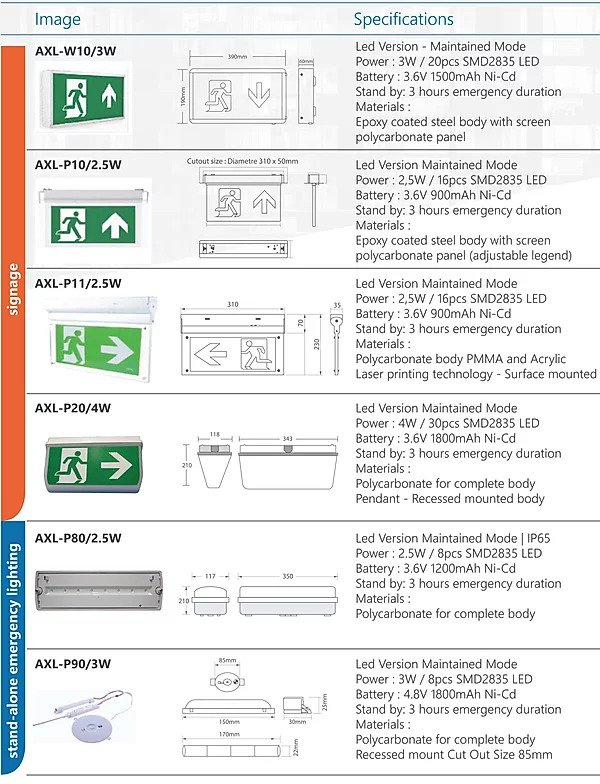

Exit Signage range provides various orientation and customized design to meet customers’ requirements.
